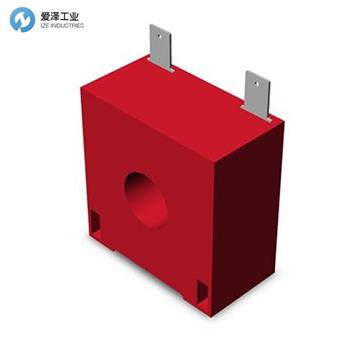

SIRIO脈沖驅動變壓器TA 151110技術參數

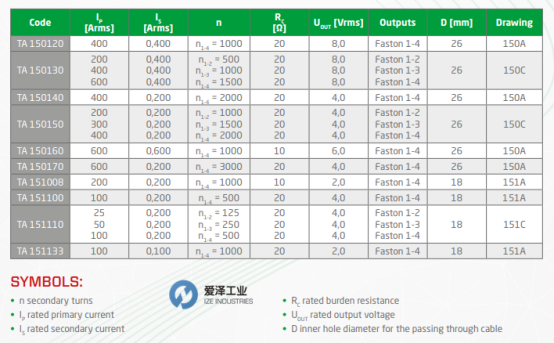

Code | Ip [Arms] | n | Ls [mH] | RC[Ω] | UOUT[Vrms] | Outputs | D [mm] | Drawing |
TA 151110 | 25 | n1-2 = 125 | 0,400 | 20 | 4,0 | Faston 1-2 | 18 | 151C |

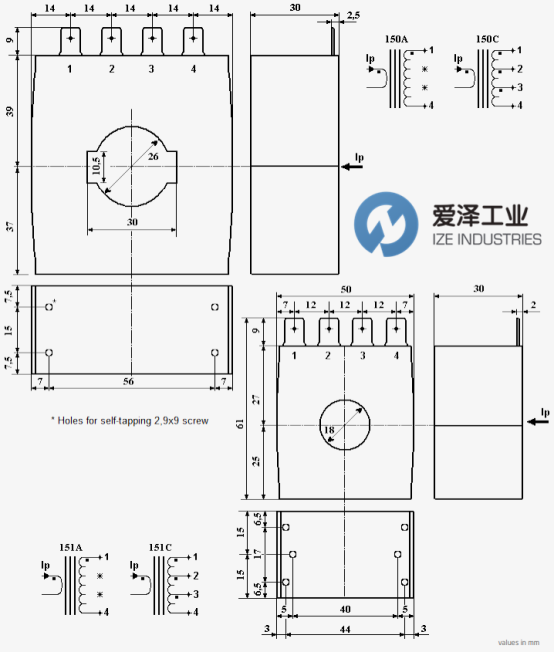

SIRIO脈沖驅動變壓器TA 151110技術尺寸圖
SIRIO脈沖驅動變壓器TA系列規格概述
通過對電流互感器的最終應用和用途的分析，提出了幾種電流互感器的設計方案。每種類型都有自己的特定功能，但它們都有相同的目標：將輸入電流值轉換成比例信號;測量的準確性取決于應用的好壞。
通常，電流是變壓器的一次電流，而二次繞組連接到負載電阻上，以獲得與測量電流信息相同的電壓信號。
目的
通過保持初級之間的電流隔離，電流互感器用于測量和檢測交流電電纜（網絡）和控制階段。 它們通常具有較高的次級匝數，因此次級電流為相對較低。 通過在次級側連接負載電阻，您可以讀取與電源。 由于次級電流較低，因此可以將低功率負載電阻連接到PCB。
特征
這些電流互感器基于環形硅鐵芯。代碼150和151標識盒子的尺寸，并且特別是用于穿過電纜（或銅排）的中心孔。 兩種尺寸都可以配備2個或4個固定件。
By considering the final application and the purpose, several current transformer kinds are available. Each type has its own specific features, but they all have the same goal: to convert, the input current value in a proportional signal; the accuracy of the measurement depends on the application.
Tipically, the current will be the primary current of the transformer, while the secondary winding will be connected to a burden resistance, in order to obtain a voltage signal with the same information of the measured current.
PURPOSE
Current transformers are used to measure and detect alternate currents, by keeping the galvanic isolation between the primary cable (the network) and the control stage. They tipically have a high number of secondary turns, so that the secondary current is relatively low. By connecting a burden resistance to the secondary side, you can read a proportional voltage signal, isolated from the mains. As the secondary current is low, the low power burden resistance can be connected to the PCB.
FEATURES
These current transformers are based on toroidal Silicon Iron core. The family code 150 and 151 identifies the size of the box and, in particular, of the central hole for passing through cable (or copper bar). Both sizes can be equipped with 2 or 4 fastons.
SIRIO脈沖驅動變壓器TA系列其他型號
SIRIO TA 150120
SIRIO TA 150130
SIRIO TA 150140
SIRIO TA 150150
SIRIO TA 150160
SIRIO TA 150170
SIRIO TA 151008
SIRIO TA 151100
SIRIO TA 151110
SIRIO TA 151133
