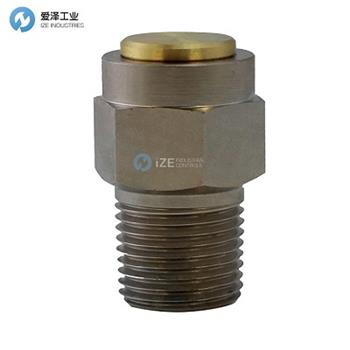

CIRCLE VALVE安全閥532B-1M-25產品參數
Specifications | |
Series | 500 |
Variation | Popoff |
Body Material | Brass |
Seal Material | Viton |
Valve Size | 1/2 in |
End Connection | Pipe Thread Male |
Operating Pressure | 0.5 to 150 psig0 to 10 bar |
Cracking Pressure | 0.5 to 150 psig |
Cracking Pressure Tolerance | ±5% |
Operating Temperature | -20 to 400 oF |
Proof Pressure | 400 psig |
Rated Burst Pressure | 500 psig |
Dim. L | 1.98 in |
Dim. L1 | 1.74 in |
Hex | 1 in |
Dia. D (max.) | 1.45 in |
Weight | .23 lbs |
Optional Body Material | 303 stainless steel316 Stainless SteelAluminumBrass |
Optional End Connections | M - Male NPT S - British Taper Pipe (Male) X - British Taper Pipe (Female) |
CIRCLE VALVE安全閥532B-1M-25產品介紹
特征：
截止閥或直通閥
可調裂紋壓力
零泄漏
精確設定壓力
防篡改調整
100％閥座泄漏測試
大多數型號均提供PED認證和CE標記
Features
Popoff or inline valves
Adjustable crack pressure
Zero leakage
Accurate set pressure
Tamper-proof adjustment
100% seat leakage tested
PED certifications and CE marking available for most models
CIRCLE VALVE安全閥500系列其他常見型號：
CIRCLE VALVE D532B-1M
CIRCLE VALVE D532B-1M-5
CIRCLE VALVE D532B-1M-55
CIRCLE VALVE D532B-1M-95
CIRCLE VALVE 532B-1M
CIRCLE VALVE 532B-1M-0.5
CIRCLE VALVE 532B-1M-1
CIRCLE VALVE 532B-1M-10
CIRCLE VALVE 532B-1M-100
CIRCLE VALVE 532B-1M-150
CIRCLE VALVE 532B-1M-2
CIRCLE VALVE 532B-1M-20
CIRCLE VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CIRCLE VALVE安全閥532B-1M-25的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CIRCLE VALVE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
