HONEYWELL變送器STG974-E1-G-00000-1C技術參數
Gage Pressure Span | 0-300 to 0-3000 psi/0-21 to 0-210 bar |
Material of Construction | Wetted Process Head 316 St. St. |
Fill Fluid | Silicone DC200 |
Process Head Configuration | 1/2" NPT |
Factory Mutual | Explosion Proof Class I, Div. 1, Groups A,B,C,D |

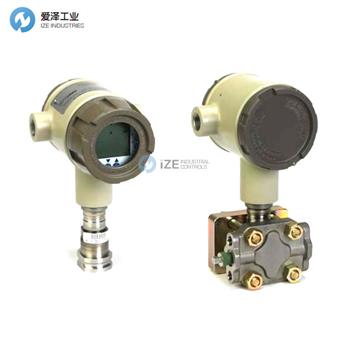

HONEYWELL變送器ST3000系列介紹
ST 3000 變送器可以替代目前使用的任何 4 到 20 毫安輸出變送器，并通過標準的兩線制系統運行。
測量裝置是實際上包含壓力傳感器和溫度傳感器的壓阻式傳感器。
基于微處理器的電子器件提供更高的量程調節比、改進的溫度補償和改進的精度。
特征
? 可選擇雙頭或在線型號以滿足工藝接口要求。
? 與 TDC 3000X 系統的直接數字集成提供了系統級的本地測量精度，而不會增加典型的 A/D 和 D/A 轉換器的不準確性。
? 獨特的壓阻式傳感器自動補償溫度輸入。
? 添加了“智能”功能，包括配置上下限值、模擬準確的模擬輸出以及選擇預編程的工程單位進行顯示。
? 具有本地或遠程接口的智能變送器功能意味著在調試、啟動和持續維護功能方面的人力效率顯著提高
The ST 3000 transmitter can replace any 4 to 20 milliampere output transmitter in use today, and operates over a standard two-wire system.
The measuring means is a piezoresistive sensor which actually contains a pressure sensor and a temperature sensor.
Microprocessor-based electronics provide higher span-turndown ratio, improved temperature compensation, and improved accuracy.
Features
? Choice of dual-head or in-line model to match process interface requirements.
? Direct digital integration with TDC 3000X system provides local measurement accuracy to the system level without adding typical A/D and D/A converter inaccuracies.
? Unique piezoresistive sensor automatically compensates input for temperature.
? Added “smart” features include configuring lower and upper range values, simulating accurate analog output, and selecting preprogrammed engineering units for display.
? Smart transmitter capabilities with local or remote interfacing means significant manpower efficiency improvements in commissioning, start-up, and ongoing maintenance functions

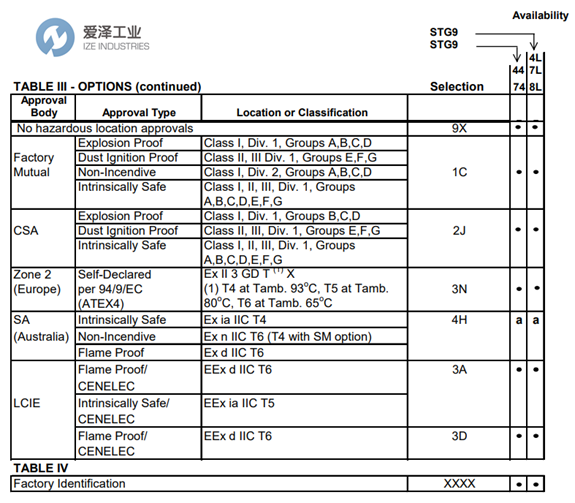

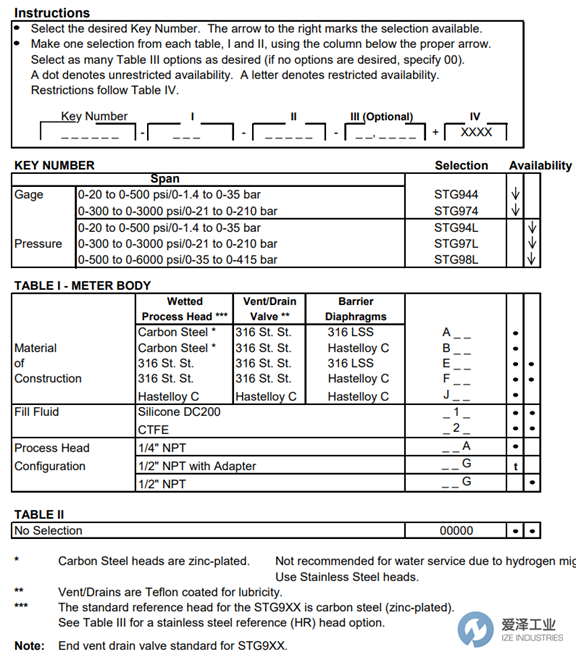

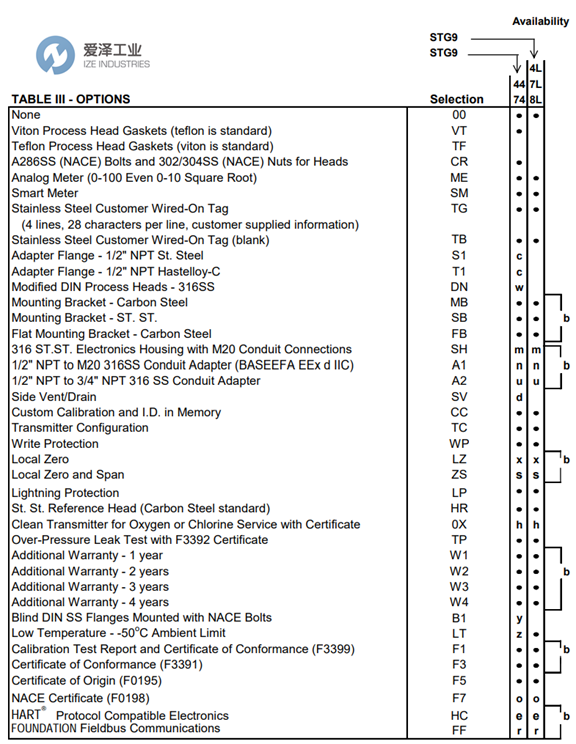

HONEYWELL變送器ST3000系列選型
HONEYWELL變送器ST3000系列其他常用型號：
HONEYWELL STG974-E1G-00000-HC.MB.S1.SV.TC-F1D3-212A
HONEYWELL STG974-A1G-00000-CR.MB.S1.SM.ZS.C1C3
HONEYWELL STG974-E1A-00000-1C-CR-HR-LP-B67M
HONEYWELL STG974-E1A-00000-1C
HONEYWELL STG974-E1A-00000-FF
HONEYWELL STG974-A1G-00000-S2
HONEYWELL STG974-A1A-00000-MB
HONEYWELL STG974-E1G-00000-1C
HONEYWELL Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL變送器STG974-E1-G-00000-1C的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
