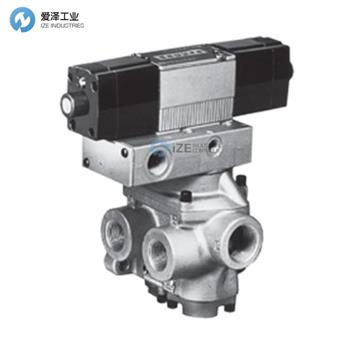

ROSS閥D2776B5003W技術參數
Valve Type | Directional Control |
Series | 27 |
Application | General |
Return | Spring |
Construction | Poppet |
Mounting | Inline |
Connection | Hardwired |
Manual Override | Non-locking |
Voltage | 24 VDC |
Duty Rating | Continuous Duty |
Power Consumption | 20 watts |
Media Temperature | 40 to 175 F (4 to 80 C) |
Fluid Media | Filtered Air |
Operating Pressure | 15 to 150 psig (1 to 10 bar) |
Pilot Supply Minimum | equal to or greater than inlet pressure |
Valve Body Material | Cast Aluminum |
Poppet/Spool Material | Acetal, Stainless Steel |
Seal Material | Buna-N |
Actuation | Electrical |
Default Position | Normally Open |
Thread Type | G |
Exhaust Pipe Size | 1" |
Pilot Type | Internal/External |
Size | 3/4" |
Ambient Temperature | 40 to 120 F (4 to 50 C) |
Inlet Pipe Size | 3/4" |
Outlet Pipe Size | 3/4" |
Cv (1-4) | 7 |
Cv (4-3) | 9.3 |
Function | 4/2 Double Direct Solenoid |
Width | 5.19 in (132 mm) |
Weight | 5.3 lb (2.4 kg) |
Length | 9.30 in (236 mm) |
Height | 8.69 in (221 mm) |
Cv (1-2) | 7 |
Cv (2-3) | 9.3 |
ROSS閥27系列介紹
27 系列，4/2 雙直接電磁閥控制，鎖定，1-1/4" 進出，1-1/2" 排氣 BSPP
27 Series, 4/2 Double Direct Solenoid Controlled, Detented, 1-1/4" In-Out,1-1/2" Exhaust BSPP
ROSS閥27系列其他常用型號：
ROSS D2776B2003
ROSS D2776B3003
ROSS D2776B4013
ROSS D2776B4003
ROSS D2776B5003
ROSS D2776B6013
ROSS D2776B6003
ROSS D2776B5003W
ROSS D2776B8013
