SUN減壓閥PRDP-MDN技術參數
Cavity | T-11A |
Series | 1 |
Capacity | 5 gpm |
Maximum Operating Pressure | 5000 psi |
Maximum Valve Leakage at 110 SUS (24 cSt) | 2.5 in3/min. |
Adjustment - No. of CW Turns from Min. to Max. setting | 5 |
Solenoid Tube Diameter | .75 in. |
Valve Hex Size | 7/8 in. |
Valve Installation Torque | 30 - 35 lbf ft |
Adjustment Screw Internal Hex Size | 5/32 in. |
Locknut Hex Size | 9/16 in. |
Locknut Torque | 80 - 90 lbf in. |
Model Weight (with coil) | 1.20 lb |
Seal kit - Cartridge | Buna: 990511007 |
Seal kit - Cartridge | Viton: 990511006 |
Seal and nut kit - Coil | Viton: 990770006 |
Model Weight | 0.72 lb. |

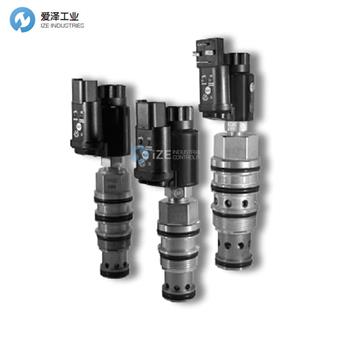

SUN減壓閥PRDP-MDN產品介紹
配置有 EPDM 密封件的濾芯適用于使用磷酸酯流體的系統。接觸石油基流體、油脂和潤滑劑會損壞密封件。
適用于蓄能器回路，因?yàn)闆](méi)有先導控制流量會導致次級回路泄漏減少。
直接作用概念在受污染的系統中提供高度可靠的操作，尤其是在死角條件下。
所有三端口減壓和減壓/泄壓閥芯在物理上是可互換的（即相同的流動路徑，相同的腔體對于給定的框架尺寸）。在考慮安裝配置時，有時建議將全容量回流管（端口 3）與減壓/溢流筒一起使用。
從減壓（端口 1）到入口（端口 2）的完全反向流動可能導致主閥芯關閉。如果回路中需要反向自由流動，請考慮在回路中添加一個單獨的止回閥。
采用 Sun 浮動式結構，可有效地減少由于安裝扭矩過大和/或型腔/墨盒加工變化而導致內部零件粘合的可能性。
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Suitable for accumulator circuits since the absence of pilot control flow results in reduced secondary circuit leakage.
Direct acting concept provides highly reliable operation in contaminated systems, especially at dead headed conditions.
All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

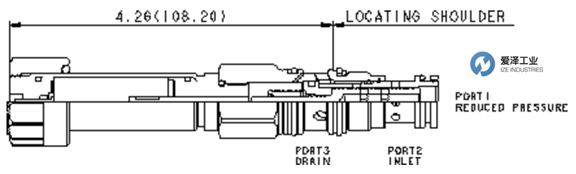

SUN減壓閥PRDP-MDN技術尺寸
SUN減壓閥PRDP系列其他常用型號：
SUN PRDP-MDN
SUN PRDP-MDV
SUN PRDP-MDE
SUN PRDP-MEN
SUN PRDP-MEV
SUN PRDP-MEE
SUN PRDP-MBN
SUN PRDP-MBV
SUN PRDP-MBE
SUN pressure reducing valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUN減壓閥PRDP-MDN的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SUN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
SUN減壓閥PRDP-MDN技術參數及尺寸
