GREENCO氣缸TS25120A-TA規格描述
General Information | |
MODEL | TS25120A-TA |
SERIAL | 242432-1 4.2014 |
GREENCO氣缸TS25120A-TA產品介紹
GREENCO是一種導向氣缸，與無引導的Cable-Trol?不同。GREENCO?上的小車包含四個直線軸承，可以安裝在兩個導桿上。因此，小車本身由導桿引導和支撐。對于更長的行程長度，可以采用可選的桿支撐，以保持最大負載能力，而不管行程長度如何。這些引導氣缸模型稱為支持GREENCOs?，因為它們包括桿支撐。不支持的GREENCOs不包括桿支撐，但具有的優點是手推車中的軸承完全環繞導桿。支撐的引導氣缸的小車中的軸承不完全環繞引導桿，因為它們必須能夠越過桿支撐件。對于支持和不支持的模型，負載重量可以直接安裝在GREENCO手推車上，無需任何其他導軌或支撐。如果根據負載重量選擇合適的引導氣缸尺寸，則負載重量甚至可以高于或低于手推車的側面。
GREENCO導向氣缸的優點：
沖程長達24英尺
支持或不支持的導向氣缸布置均可用
兩種軸承選擇：硬化接地軸上的再循環球軸承是不銹鋼軸上的標準，自潤滑或熱塑性軸承是可選的
內部可調節墊是標準配置，外部減震器是可選的
The GREENCO? is a guided cylinder, unlike the Cable-Trol? which is unguided. The trolley on the GREENCO? incorporates four linear bearings which ride on two guide rods. The trolley itself is therefore guided and supported by the guide rods. For longer stroke lengths, optional rod supports can be incorporated to maintain maximum load capacity regardless of stroke length. Those guided cylinder models are called supported GREENCOs? because they include the rod supports. Unsupported GREENCOs do not include the rod supports, but have the advantage that the bearings in the trolley completely encircle the guide rods. The bearings in the trolley of a supported guided cylinder do not completely encircle the guide rods, because they have to be able to pass over the rod supports. For both supported and unsupported models, load weights can be mounted directly to the GREENCO trolley without any other guides or supports. The load weights can even be above or off to the side of the trolley, provided the appropriate guided cylinder size is chosen based on the load weight.
Benefits to our GREENCO Guided Cylinder:
Strokes up to 24 feet
Supported or unsupported guided cylinder arrangements are both available
Two bearing options: Re-circulating ball bearings on hardened ground shafts are standard, self-lubricating or thermoplastic bearings on stainless steel shafts are optional
Internal adjustable cushions are standard, external shock absorbers are optional

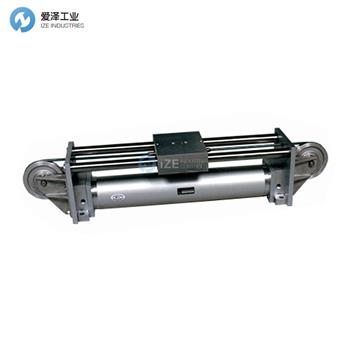

GREENCO氣缸TS25120A-TA
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件GREENCO 氣缸部分型號：
GREENCO T15
GREENCO T20
GREENCO T20P
GREENCO T25
GREENCO T25P
GREENCO T32
GREENCO T40
GREENCO T50
GREENCO cylinder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GREENCO氣缸TS25120A-TA的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GREENCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.

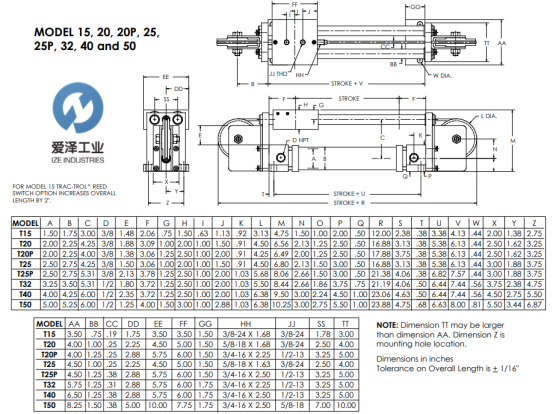

GREENCO氣缸TRAC-TROL系列TS25120A-TA產品參數
