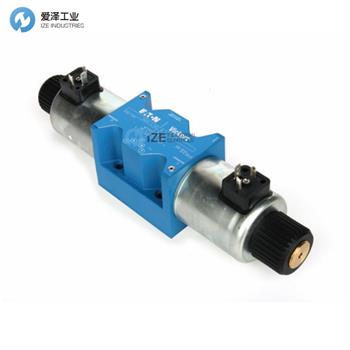

VICKERS液壓閥DG4V-5-2AJ-M-U-H7-29-EN124產品參數
Product Specifications | ||
VALVE TYPE | DG | (DG) DIRECTIONAL CONTROL VALVE WITH SUB PLATE MOUNTED |
OPERATION | 4 | (4) SOLENOID OPERATED |
PRESSURE RATING | V | (V) 315 BAR AT PORTS A, B AND P |
INTERFACE | -5 | (5) ISO-4401 SIZE 05 |
SPOOL TYPE | -2 | (2) P,A,B,T BLOCKED |
SPRING ARRANGEMENT | A | (A) SPRING OFFSET TO A. SINGLE END. |
BUILD ORIENTATION | _ | (0) STANDARD BUILD |
SPOOL SHIFT CONTROL | J | (J) NOTCHED SPOOL ( JUST FOR DC MODELS ONLY, EXCEPT 0A SPOOL ) |
MANUAL OVERRIDE | _ | (0) PLAIN OVERRIDE IN SOLENOID ENDS ONLY |
SOLENOID ENERGISATION | - | THIS FEATURE IS PROPRIETARY OR UNPUBLISHED. PLEASE CONTACT YOUR DANFOSS REPRESENTATIVE OR A LOCAL DISTRIBUTOR FOR ASSISTANCE |
SOLENOID IDENTIFICATION | M | (M) FLAG WITH STANDARD BUILD AS PER ANSI B93 9 |
SPOOL MONITORING SWITCH | _ | (0) NO SPOOL POSITION MONITORING SWITCH |
COIL TYPE | -U | (U) ISO4400, DIN43650 CONNECTOR |
COIL VOLTAGE | -H | (H) 24 VDC 38 WATT |
TANK PORT RATING | 7 | (7) 210 BAR TANK PRESSURE RATING |
DESIGN CODE | -22 | (29) DESIGN NUMBER |
SPOOL DAMP ORIFICE | _ | (0) OMIT IF NOT REQUIRED |
SPECIAL FEATURE | _ | OMIT FOR STANDARD |
VICKERS液壓閥DG4V系列其他常見型號：
VICKERSCORP DG4V-5-6CJ-H-M-U-G6-20
VICKERSCORP DG4V-5-0BL-M-U-EH6-20
VICKERSCORP DG4V-5-6CJ-M-U-HL6-20
VICKERSCORP DG4V-5-6CJ-H-M-U-G6-20
VICKERSCORP DG4V-5-2AL-VM-U-EK6-20
VICKERSCORP DG4V-5-2AJ-M-U-H7-29-EN124-EU3
VICKERSCORP DG4V-5-8CJ-VM-U-G6-20-J06
VICKERSCORP DG4V-5-2AJ-M-U-H7-29-EN124-J99
VICKERSCORP DG4V-5-0CJ-M-U-H6-20-J99
VICKERSCORP DG4V-5-2AJ-M-U-H7-29-EN124-J06
VICKERS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VICKERS液壓閥DG4V-5-2AJ-M-U-H7-29-EN124的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VICKERS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website:www.www.agcjj.cn.
