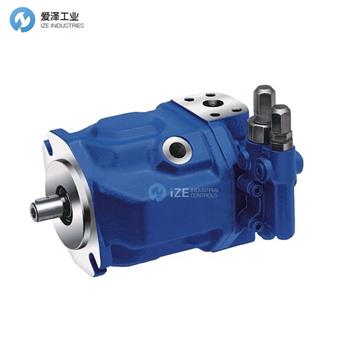

REXROTH齒輪泵А10VSO28DFR1/31R-VPA12N003規格描述
Product attributes | |
Version_1 | Standard |
Version_2 | Standard |
Product family | A10VSO |
Type of actuation | Variable pump, open circuit |
Size (displacement) [cm3] | 28 |
Control device | DR F controller X-T plugged 32/53 |
Series | Series 3, index 1 |
Direction of rotation | clockwise (w.view on shaft end) |
Sealing material | FKM (standard) |
Shaft end | ISO shaft key |
Mounting flange | ISO 3019-2 (metric), 2 hole |
Working ports | B flan l metr, S flan l metr |
Through drive | Without through drive |
Connector for solenoids | Without |
Rotational speed [rpm] | 1500 |
Working pressure [bar] | 280 |
Max. displacement [cm3] | 28 |
Max. displacement setting | Variabel |
Min. displacement [cm3] | 0 |
Min. displacement setting | Fix |
Max. flow [l/min] | 42 |
Min. flow [l/min] | 0 |
Internal drain line | No |
Pressure differential FR [bar] | 14 |
Classification society (external) | No |
Test certificate | Without |
Test certificate language code | Without |
Paint/base coat | without |
Paint/top coat | without |
Weight [kg] | 17.79 |
REXROTH齒輪泵A10VSO系列特點
A10VSO 是一款具有軸向柱塞旋轉組的變量泵,采用斜盤設計,適用于開式回路中的液壓傳動。其流量與驅動速度和排量成正比,且可以通過閉環控制實現連續調節。
主要特點:
低運行噪音
長使用壽命
控制響應時間短
優良的吸油性能
配備兩個排油口
The A10VSO is a variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuits. The flow is proportional to the drive speed and the displacement. The flow can be continuously changed with closed loop control.
Low operating noise
Long service life
Controls with short response times
Excellent suction characteristics
2 drain ports
REXROTH泵A10VSO系列其他常用型號:
REXROTH А10VSO28DFR1/31R-VPA12N003
REXROTH R902476345
REXROTH R902419058
REXROTH А10VSO 18 DFR/31R-VPA12N00
REXROTH A10VSO 28 DFR /31R-VKC62N00
REXROTH A10VSO 10 DR /52R-VPA14N00
REXROTH А10VSO 45 DFR1/31R-PPA12 N00
REXROTH pump NEW + ORIGINAL+ ONE YEAR WARRANTY
