AMPHENOL連接器WIND-LOK系列產品簡介
Wind-Lok是一個反向卡口連接器，結合了專利RADSOK技術。它被設計用于從電源到負載輸送高功率。插頭包含一個18mm的RADSOK插座，插座包含一個18mm的插腳，可選擇壓接、2孔母線或螺紋母線端子。當通過防接觸設計來保持未配對的人身安全時。RADSOK最大的好處是它傳輸大電流時極低的毫伏降和最小的溫升。18毫米風鎖非常適合高安培應用，如發電機，燃料電池，負載銀行和充電系統。
The Wind-Lok? is a reverse bayonet connector which incorporates our patented RADSOK? technology. It is designed to deliver high power from source to load. The plug contains an 18mm RADSOK? socket and Receptacle contains an 18mm pin with the option of crimp, 2 hole busbar, or threaded busbar termination. When unmated personal safety is maintained through a touchproof contact design. The RADSOK’s strongest benefit is its very low milli-volt drop and minimized temperature rise when transmitting high current. The 18mm Wind-Lok? is perfectly suited for high amperage applications such as electrical generators, fuel cells, load banks, and charging systems.
AMPHENOL連接器WIND-LOK系列特點與優勢
?1/4轉反轉卡口
?壓接或母線端接
?防觸電
?查找器證明
?電流：800安培
?電壓：DC 2500V
?工作溫度：-40oC至+125oC
?可插拔次數2000次
?黑色陽極氧化處理300天鹽霧等級
?300天鹽霧等級
? 1/4 Turn Reverse Bayonet
? Crimp or Busbar Termination
? Silver Plated Contacts
? Finger Proof
? Current: 800 Amp
? Voltage: DC 2500V
? Operating Temperature: -40oC to +125oC
? 2000 Mating Cycles
? 300 Day Salt Spray Rating For Black Anodize
? 350 Hours Salt Spray Rating For Electrophoretic

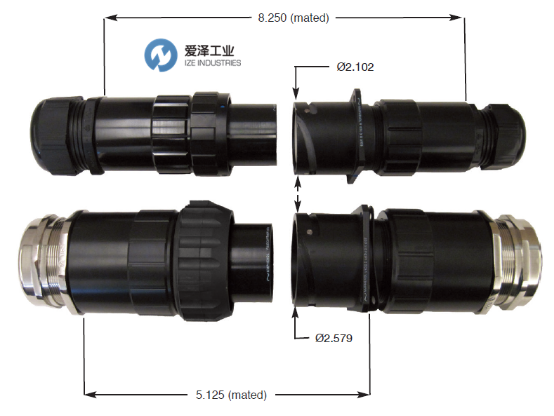

AMPHENOL連接器WIND-LOK系列尺寸圖

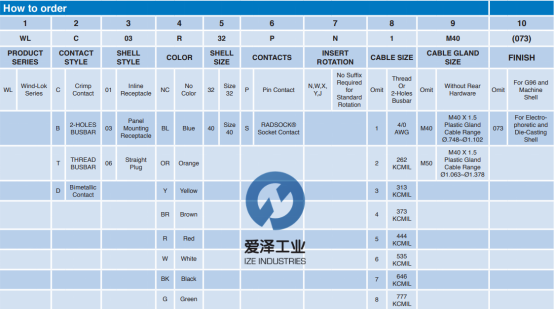

AMPHENOL連接器WIND-LOK系列選型參考
AMPHENOL連接器WIND-LOK系列 示例WLC01NC32PN2M50073
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件AMPHENOL連接器部分型號：
AMPHENOL連接器WLC01NC32PN1M40073
AMPHENOL連接器WLC01NC32PN1M50073
AMPHENOL連接器WLC01NC32PN2M40073
AMPHENOL連接器WLC01NC32PN2M50073
AMPHENOL連接器WLC01NC32PN3M40073
AMPHENOL連接器WLC01NC32PN3M50073
AMPHENOL連接器WLC01NC32PN4M40073
AMPHENOL連接器WLC01NC32PN4M50073
AMPHENOL連接器WLC01NC32PN5M40073
AMPHENOL連接器WLC01NC32PN5M50073
AMPHENOL連接器WLC01NC32PN6M40073
AMPHENOL連接器WLC01NC32PN6M50073
AMPHENOL連接器WLC01NC32PN7M40073
AMPHENOL連接器WLC01NC32PN7M50073
AMPHENOL連接器WLC01NC32PN8M40073
AMPHENOL連接器WLC01NC32PN8M50073
AMPHENOL連接器WLC01NC32SN1M40073
AMPHENOL連接器WLC01NC32SN1M50073
AMPHENOL連接器WLC01NC32SN2M40073
AMPHENOL連接器WLC01NC32SN2M50073
AMPHENOL連接器WLC01NC32SN3M40073
AMPHENOL連接器WLC01NC32SN3M50073
AMPHENOL連接器WLC01NC32SN4M40073
AMPHENOL連接器WLC01NC32SN4M50073
AMPHENOL連接器WLC01NC32SN5M40073
AMPHENOL連接器WLC01NC32SN5M50073
AMPHENOL連接器WLC01NC32SN6M40073
AMPHENOL連接器WLC01NC32SN6M50073
AMPHENOL連接器WLC01NC32SN7M40073
AMPHENOL連接器WLC01NC32SN7M50073
AMPHENOL連接器WLC01NC32SN8M40073
AMPHENOL連接器WLC01NC32SN8M50073
AMPHENOL連接器WLC01BL40PN1M40073
AMPHENOL連接器WLC01BL40PN1M50073
AMPHENOL連接器WLC01BL40PN2M40073
AMPHENOL連接器WLC01BL40PN2M50073
AMPHENOL連接器WLC01BL40PN3M40073
AMPHENOL連接器WLC01BL40PN3M50073
AMPHENOL連接器WLC01BL40PN4M40073
AMPHENOL連接器WLC01BL40PN4M50073
AMPHENOL連接器WLC01BL40PN5M40073
AMPHENOL連接器WLC01BL40PN5M50073
AMPHENOL連接器WLC01BL40PN6M40073
AMPHENOL連接器WLC01BL40PN6M50073
AMPHENOL連接器WLC01BL40PN7M40073
AMPHENOL連接器WLC01BL40PN7M50073
AMPHENOL連接器WLC01BL40PN8M40073
AMPHENOL連接器WLC01BL40PN8M50073
AMPHENOL連接器WLC01BL40SN1M40073
AMPHENOL連接器WLC01BL40SN1M50073
AMPHENOL連接器WLC01BL40SN2M40073
AMPHENOL連接器WLC01BL40SN2M50073
AMPHENOL連接器WLC01BL40SN3M40073
AMPHENOL連接器WLC01BL40SN3M50073
AMPHENOL連接器WLC01BL40SN4M40073
AMPHENOL連接器WLC01BL40SN4M50073
AMPHENOL連接器WLC01BL40SN5M40073
AMPHENOL連接器WLC01BL40SN5M50073
AMPHENOL連接器WLC01BL40SN6M40073
AMPHENOL連接器WLC01BL40SN6M50073
AMPHENOL連接器WLC01BL40SN7M40073
AMPHENOL連接器WLC01BL40SN7M50073
AMPHENOL連接器WLC01BL40SN8M40073
AMPHENOL連接器WLC01BL40SN8M50073
AMPHENOL連接器WLC01OR40SN3M40073
AMPHENOL連接器WLC01OR40SN3M50073
AMPHENOL連接器WLC01OR40SN4M40073
AMPHENOL連接器WLC01OR40SN4M50073
AMPHENOL連接器WLC01OR40SN5M40073
AMPHENOL連接器WLC01OR40SN5M50073
AMPHENOL連接器WLC01Y40SN6M40073
AMPHENOL連接器WLC01Y40SN6M50073
AMPHENOL連接器WLC01Y40SN7M40073
AMPHENOL連接器WLC01Y40SN7M50073
AMPHENOL連接器WLC01Y40SN8M40073
AMPHENOL連接器WLC01Y40SN8M50073
AMPHENOL連接器WLB01NC32PN1M40073
AMPHENOL連接器WLB01NC32PN1M50073
AMPHENOL連接器WLB01NC32PN2M40073
AMPHENOL連接器WLB01NC32PN2M50073
AMPHENOL連接器WLB01NC32PN3M40073
AMPHENOL連接器WLB01NC32PN3M50073
AMPHENOL連接器WLB01NC32PN4M40073
AMPHENOL連接器WLB01NC32PN4M50073
AMPHENOL連接器WLB01NC32PN5M40073
AMPHENOL連接器WLB01NC32PN5M50073
AMPHENOL連接器WLB01NC32PN6M40073
AMPHENOL連接器WLB01NC32PN6M50073
AMPHENOL連接器WLB01NC32PN7M40073
AMPHENOL連接器WLB01NC32PN7M50073
AMPHENOL連接器WLB01NC32PN8M40073
AMPHENOL連接器WLB01NC32PN8M50073
AMPHENOL連接器WLB01NC32SN1M40073
AMPHENOL連接器WLB01NC32SN1M50073
AMPHENOL連接器WLB01NC32SN2M40073
AMPHENOL連接器WLB01NC32SN2M50073
