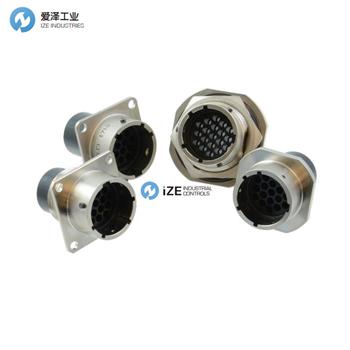

AMPHENOL LPT系列連接器產品簡介
LPT是基于軍工MIL-C-26482 I系列標準和安費諾原有PT系列產品開發的,結構改進、成本更具優勢的金屬外殼連接器。
The LPT series is based on the MIL-C-26482 Series I and Amphenol original PT series. Cost-effective without sacrificing quality The series is a cylindrical bayonet connector made of an aluminum housing with stamped press-fit contacts.
AMPHENOL LPT系列連接器特點與優勢
?鋁合金外殼兼顧輕量和金屬機械性能
?提供多種外殼電鍍選項
?3爪沖壓壓接端子
?提供機加工端子選項
?市場現貨供應
?快速卡口連接
?5鍵位盲插
?連接后防水等級達到IP678&IP69K
?抗高頻振動和沖擊
?工作溫度范圍:-40°Cto125C
?與安費諾PT系列產品互配
?PT標準外殼經過了市場的長期可靠性驗證
?UL、TUV認證進行中
結構特點
5種外殼
①盒式安裝外殼
②鎖緊螺母外殼
③直插頭
④墻式安裝插座
⑤空中對接插座
3種表面處理方式
①鍍黑鋅
②鍍鎳
③鍍灰色鋅鎳
4種旋轉定位角度：膠芯旋轉 W, X, Y, Z
壓接端子尺寸：
①＃12: 14-12 (2.00-4.00mm2)
②＃16: 18-16 (0.75-1.50mm2)
③＃20: 24-20 (0.25-0.50mm2)
. Aluminum alloy housing combines light weight and metal mechanical properties
. Available in a variety of housing plating options
. 3-jaw stamping crimp terminal
. Provide machining terminal options
. Market spot supply
. Fast bayonet connection
. 5 key position blind insertion
. Waterproof rating after connection to IP67 & IP69K
. Anti-high frequency vibration
. Operating temperature range: 40. C to 125. C
. With Amphenol PT series production crystal E
. The PT standard case has been verified by the market's demon period reliability
. UL, TUV certification in progress
Structural features
5 kinds of shells:
1 box mounting housing
2 lock nut housing
1 straight plug
4 wall mounting socket
5 air docking socket
3 kinds of surface treatment methods:
1 black-plated
2 plating
3 gray-plated town
4 kinds of rotation positioning angle: rubber core rotation W, X, Y, Z
Crimp terminal size:
1#12: 14-12 (2.00-4.00mm2)
2#16: 18-16 (0.75-1.50mm2)
3#20: 24-20 (0.25-0.50mm2)

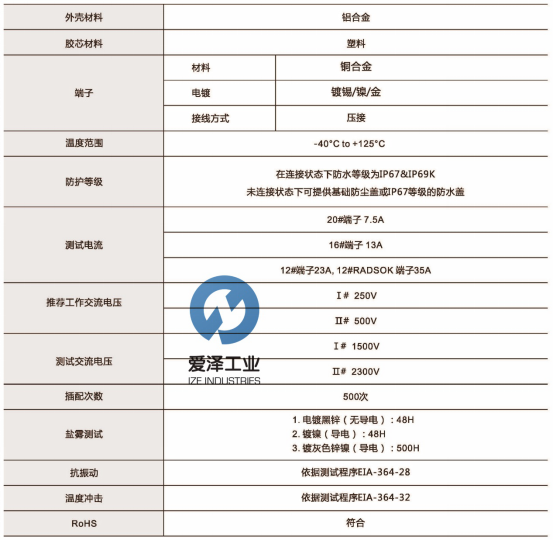

AMPHENOL LPT系列連接器技術資料

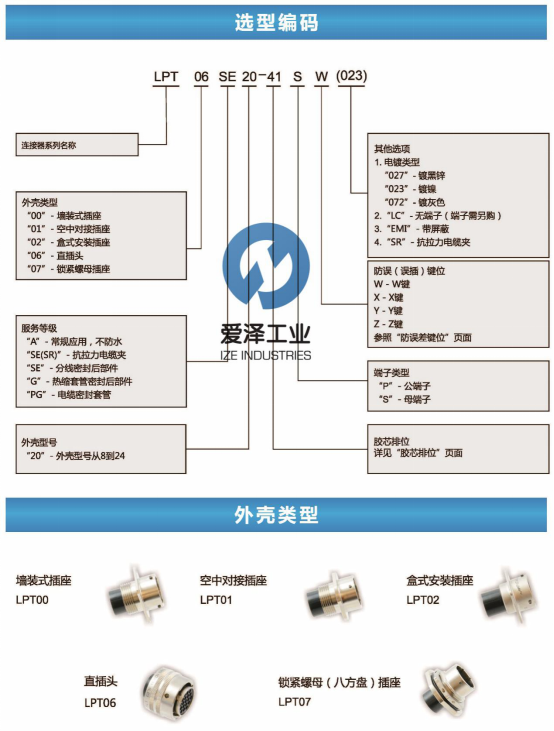

AMPHENOL LPT系列連接器選型參考

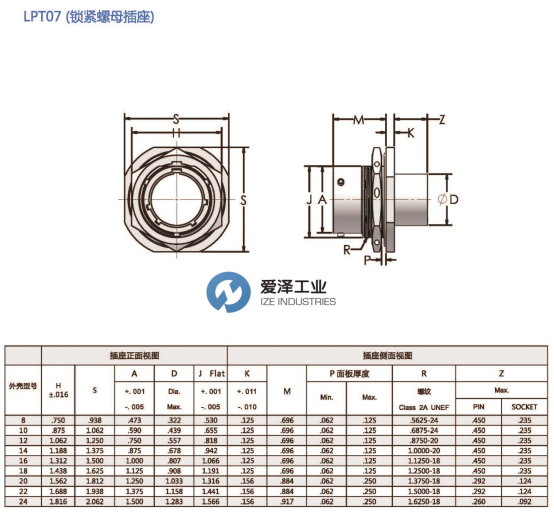

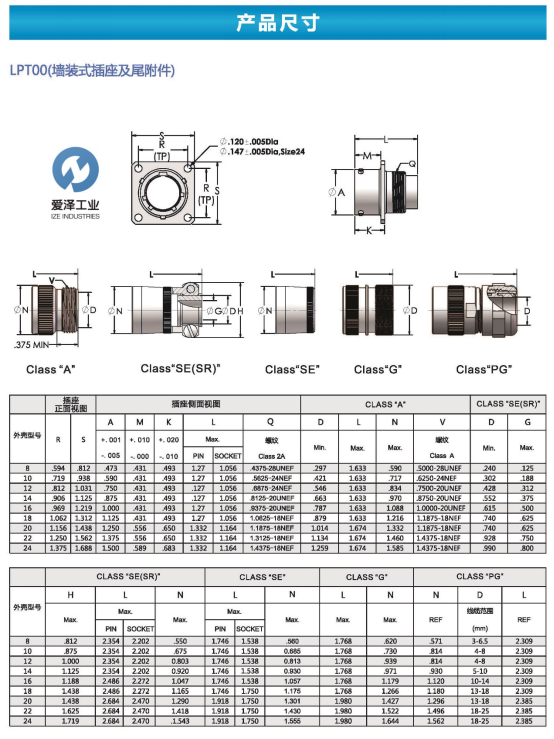

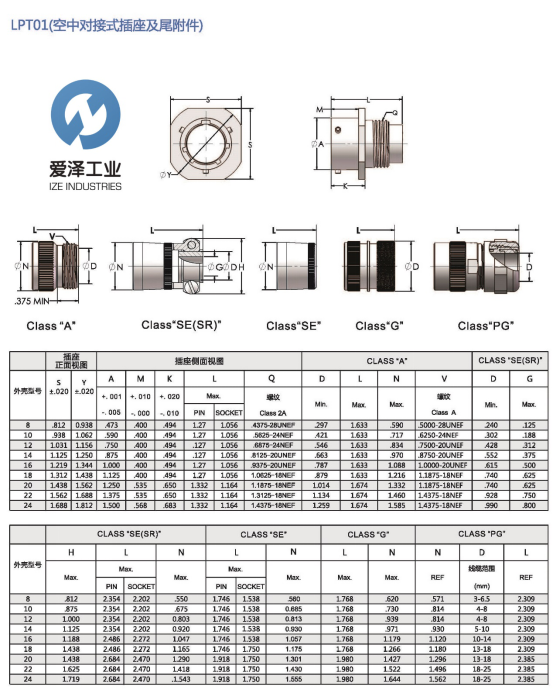

AMPHENOL LPT系列連接器尺寸大小
AMPHENOL LPT系列連接器
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件AMPHENOL連接器型號：
AMPHENOL連接器LPTC-SF-20P-20-1
AMPHENOL連接器LPTC-SF-20P-20-2
AMPHENOL連接器LPTC-SF-20P-20-3
AMPHENOL連接器LPTC-SF-20P-20-4
AMPHENOL連接器LPTC-SF-20P-20-5
AMPHENOL連接器LPTC-SF-208-20-1
AMPHENOL連接器LPTC-SF-205-20-2
AMPHENOL連接器LPTC-SF-208-20-3
AMPHENOL連接器LPTC-SF-208-20-4
AMPHENOL連接器LPTC-SF-208-20-5
AMPHENOL連接器UPTC-SF-1SP-16-1
AMPHENOL連接器UPTC-SF-1SP-16-2
AMPHENOL連接器UPTC-SF-1SP-16-3
AMPHENOL連接器UPTC-SF-16P-16-4
AMPHENOL連接器UPTC-SF-16P-16-5
AMPHENOL連接器UPTC-SF-1SP-20-1
AMPHENOL連接器UPTC-SF-16P-20-2
AMPHENOL連接器UPTC-SF-1SP-20-3
AMPHENOL連接器UPTC-SF-1SP-20-4
AMPHENOL連接器UPTC-SF-1SP-20-5
AMPHENOL連接器UPTC-SF-168-16-1
AMPHENOL連接器UPTC-SF-168-16-2
AMPHENOL連接器UPTC-SF-168-16-3
AMPHENOL連接器UPTC-SF-168-16-4
AMPHENOL連接器UPTC-SF-168-16-5
AMPHENOL連接器UPTC-SF-168-20-1
AMPHENOL連接器UPTC-SF-168-20-2
AMPHENOL連接器UPTC-SF-168-20-3
AMPHENOL連接器UPTC-SF-168-20-4
AMPHENOL連接器UPTC-SF-168-20-5
AMPHENOL連接器LPTC-SF-12P-12-1
AMPHENOL連接器LPTC-SF-12P-12-2
AMPHENOL連接器LPTC-SF-12P-12-3
AMPHENOL連接器LPTC-SF-12P-12-4
AMPHENOL連接器LPTC-SF-12P-12-5
AMPHENOL連接器LPTC-SF-125-12-1
AMPHENOL連接器LPTC-SF-128-12-2
AMPHENOL連接器LPTC-SF-125-12-3
AMPHENOL連接器LPTC-SF-125-12-4
AMPHENOL連接器LPTC-SF-125-12-5
AMPHENOL連接器LPTC-MA-20P-20-1
AMPHENOL連接器LPTC-MA-20P-20-2
AMPHENOL連接器LPTC-MA-20P-20-3
AMPHENOL連接器LPTC-MA-20P-20-4
AMPHENOL連接器LPTC-MA-20P-20-5
AMPHENOL連接器LPTC-MA-205-20-1
AMPHENOL連接器LPTC-MA-205-20-2
AMPHENOL連接器LPTC-MA-205-20-3
AMPHENOL連接器LPTC-MA-205-20-4
AMPHENOL連接器LPTC-MA-205-20-5
AMPHENOL連接器UPTC-MA-16P-16-1
AMPHENOL連接器UPTC-MA-16P-16-2
AMPHENOL連接器UPTC-MA-16P-16-3
AMPHENOL連接器UPTC-MA-16P-16-4
AMPHENOL連接器UPTC-MA-16P-16-5
AMPHENOL連接器UPTC-MA-16P-2C
AMPHENOL連接器UPTC-MA-1GP-20-2
AMPHENOL連接器UPTC-MA-16P-2C
AMPHENOL連接器UPTC-MA-16P-2Q-4
AMPHENOL連接器UPTC-MA-16P-25
AMPHENOL連接器UPTC-MA-165-16-1
AMPHENOL連接器UPTC-MA-165-16-2
AMPHENOL連接器UPTC-MA-165-16-3
AMPHENOL連接器UPTC-MA-165-16-4
AMPHENOL連接器UPTC-MA-16$-16-5
AMPHENOL連接器UPTC-MA-16S-2C
AMPHENOL連接器UPTC-MA-165-20-2
AMPHENOL連接器UPTC-MA-165-23
AMPHENOL連接器UPTC-MA-16S-2D-4
AMPHENOL連接器UPTC-MA-165-20-5
AMPHENOL連接器LPTC-MA-12P-12-1
AMPHENOL連接器LPTC-MA-12P-12-2
AMPHENOL連接器LPTC-MA-12P-12-3
AMPHENOL連接器LPTC-MA-12P-12-4
AMPHENOL連接器LPTC-MA-12P-12-5
AMPHENOL連接器LPTC-MA-125-12-1
AMPHENOL連接器LPTC-MA-125-12-2
AMPHENOL連接器LPTC-MA-12$-12-3
AMPHENOL連接器LPTC-MA-125-12-4
AMPHENOL連接器LPTC-MA-125-12-5
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AMPHENOL LPT系列連接器的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。
有關AMPHENOL LPT系列連接器更詳細的信息或者購買AMPHENOL相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.www.agcjj.cn.
