愛澤工業2025年6月部分到貨產品專題及庫存
如下為我司愛澤工業IZE_Industries本月到貨BAILEY BIRKETT相關產品，歡迎致電索取樣本資料和產品信息。
BAILEY安全泄壓閥70752EL BAILEY安全泄壓閥707-12VD
BAILEY減壓閥1C/202422/C BAILEY減壓閥2044-80-0.7-7.0
BIRKETT安全泄壓閥2J3H2111Z0/GP BIRKETT安全泄壓閥1D2H2311Z0/GP

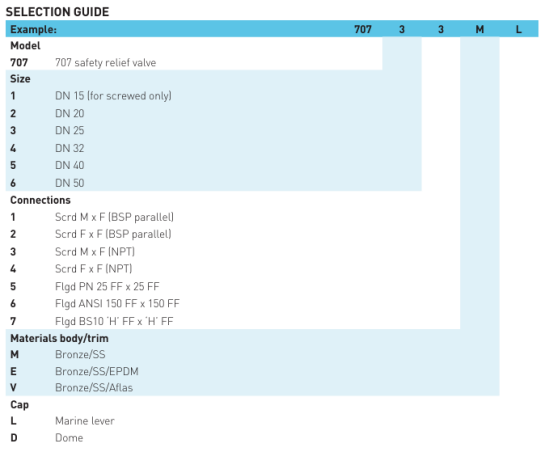

BAILEY安全泄壓閥707系列介紹及選型
Bailey 707安全泄壓閥采用頂部導向設計，閥座孔徑暢通，提升能力強。這款青銅閥體閥門可選配彈性或金屬內件，并可選擇螺紋或法蘭連接。
Bailey 707已通過BS EN ISO 4126第1部分(BS6759 pt 1:2:3)認證，適用于空氣/氣體、蒸汽/熱水（溫度高于 100?C）和工藝液體。
測試桿可用于在線安全檢查，或者，對于需要在排放側進行耐壓密封的工況，例如封閉式排放的液體工況，也可提供密封圓頂。
注意：707取代了型號706、1640B、Pop系列（3373、3376、1643、3373A、3376A）和300系列。
The Bailey 707 Safety Relief Valve encompasses a top guided design, combining an unobstructed seat bore with high lift capability. This bronze bodied valve can be supplied with a resilient or metal trim with a choice of screwed and flanged connections.
The Bailey 707 is certified to BS EN ISO 4126 Part 1 (BS6759 pt 1:2:3) and is suitable for duty on air/gas, steam/hot water (above 100?C) and process liquid.
Test levers are available for inline safety checking, alternatively a sealed dome can be supplied for service conditions requiring a pressure tight seal on the discharge side, e.g. liquid service with enclosed discharge.
Note: The 707 replaces figure numbers 706, 1640B, Pop ranges (3373, 3376, 1643, 3373A, 3376A), and the 300 series.
BAILEY減壓閥G4系列介紹
Bailey G4系列先導式減壓閥提供全面的產品組合，用于控制蒸汽、空氣和精細工業氣體等重要服務。G4系列先導式減壓閥是一款自作用式、整體安裝的先導式減壓閥，設計極其緊湊，功能多樣。
? 精確，能夠在+/-1?2%的范圍內調節出口壓力。
? 集成先導式，設計極其緊湊。
? 自驅動，無需外部電源。
? 完全平衡，無論入口壓力如何波動，都能保持控制穩定性。
? 全啟式，最大容量/最小尺寸。
? 可靠關閉，確保無泄漏運行。
? 可調比，多種尺寸、材質和連接方式可供選擇。
? 互換性，許多部件可在各種類型和尺寸之間互換，因此易于調整，適用于金屬/軟閥座、高壓/低壓應用。
? PED，所有閥門均完全符合PED標準。
The Bailey ‘G4’ Series of pilot operated pressure reducing valves offers a comprehensive range for control of vital services such as steam, air and fine industrial gases.The ‘G4’ is a self acting, integral mounted pilot operated pressure reducing valve, which is designed to be extremely compact and versatile.
? Accuracy,capable of regulating outlet pressure within +/-1?2%.
? Integral pilot, extremely compact design.
? Self actuated, no external power source required.
? Fully balanced, stability of control regardless of inlet pressure fluctuations.
? Full lift capability, maximum capacity/minimum size.
? Positive shut off, ensures leak free operation.
? Rangeability, wide choice of sizes, materials and connections.
? Interchangeability, many components are interchangeable between the various types and sizes, therefore easily adapted, metal/soft seats, high/low pressure.
? PED,all valves are in full compliance with the PED.

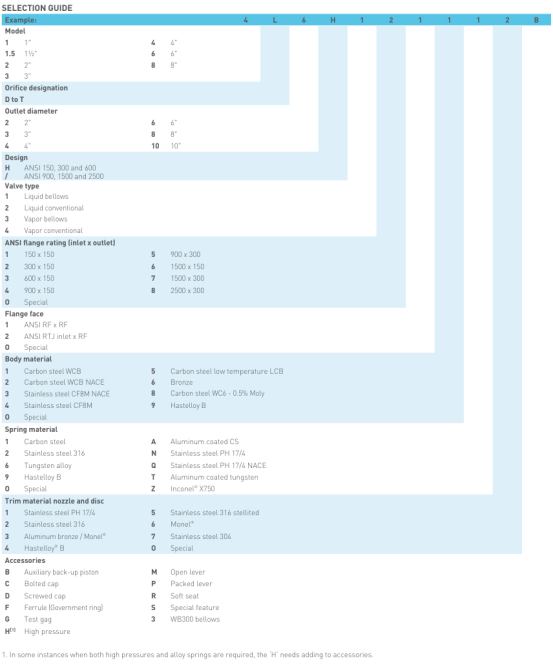

BIRKETT安全泄壓閥WB系列
彈簧式安全泄壓閥采用全行程和全噴嘴設計，可安全釋放各種工藝容器中的過壓。
? 全噴嘴、全行程設計，提供高流量系數和高容量。
? 多種材質可選，為各種應用提供解決方案。
? 輕量化結構降低搬運和運輸成本，并有利于海上作業。
? 閥座泄漏完整性設計，最大限度地減少逸散性排放。
? 可互換零件，可輕松從氣液轉換，從傳統閥體轉換為波紋管。
? 現場測試能力，降低維護成本。
? 零件數量減少，最大程度減少庫存，降低維護成本。
? 閥門符合 API 526 壓力/溫度范圍、節流面積和尺寸標準。
Spring loaded safety relief valves with a full lift and full nozzle to relieve excess pressure safely in a variety of process vessels
? Full nozzle, full lift provides high discharge coefficients and high capacities.
? Wide range of materials provides solutions for any application.
? Lightweight construction reduces handling and shipping costs and benefits offshore service.
? Seat leakage integrity minimizes fugitive emissions.
? Interchangeable parts enable simple modification from gas to liquid and conventional to bellows.
? In-situ testing capability reduces maintenance costs.
? Reduced number of parts minimizes inventory and reduces maintenance costs.
? Valves conform to API 526 pressure/ temperature ranges, orifice areas and dimensions.
BAILEY BIRKETT泄壓閥常用型號：
BAILEY 0337-H01ANM-50
BAILEY 0337-H60ANE-50
BAILEY 0337-J60ANE-65
BAILEY 0337-J60ANM-65
BAILEY 0337-K01ANE-80
BAILEY 0337-K01ANM-80
BAILEY 1C/202422/C
BAILEY 2044-100-0.7-7.0
BAILEY 2044-100-2.8-10.5
BAILEY 2044-65-0.7-7.0
BAILEY 2044-65-2.8-10.5
BAILEY 2044-80-0.7-7.0
BAILEY 2044-80-0.7-7.0
BAILEY 2044-80-2.8-10.5
BAILEY 2B/571422/P
BAILEY 2H3H4211A2/D
BAILEY 480-20
BAILEY 480-25
BAILEY 480-40
BAILEY 480-50
BAILEY 616D-DN40
BAILEY 616D-DN50
BAILEY 70752EL
BAILEY 716T-20
BAILEY 716T-50
BAILEY 726-50-S-6.7-10.0
BAILEY 746-100-OPEN
BAILEY 746-25-OPEN
BAILEY 746-40-OPEN
BAILEY 746-80-OPEN
BAILEY G4-2042OV
BAILRY 70711ED
BAILRY 70711EL
BAILRY 70711MD
BAILRY 70711ML
BAILRY 70711VD
BAILRY 70711VL
BAILRY 70712ED
BAILRY 70712EL
BAILRY 70712MD
BAILRY 70712ML
BAILRY 70712VD
BAILRY 70712VL
BAILRY 70766MD
BAILRY 70766ML
BAILRY 70766VD
BAILRY 70766VL
BAILRY 70767EL
BAILRY 70767MD
BAILRY 70767ML
BAILRY 70767VD
BAILRY 70767VL
BIRKETT 1D2H2111Z0/GP
BIRKETT 1D2H2311Z0/GP
BIRKETT 1D2H2311Z0/PG
BIRKETT 1D2H3311Z2/CG
BIRKETT 1D2H4111A2/DS
BIRKETT 1D2H431110/D
BIRKETT 1D2H4311A0D
BIRKETT 1D2P2310Z9/1D
BIRKETT 2J3H2111Z0/GP
