DELTROL節流閥F系列技術參數
Max Operating Pressure (psi) | 2000 |
Max Operating Pressure (bar) | 138 |
Max Flow gpm | 1.5 |
Max Flow lpm | 5.7 |
Max Cracking Pressure psi | 2.5 |
Max Cracking Pressure bar | 0.17 |
Cv Factor | 0.23 |
Port Size | 1/8" |
Port Type | NPTF |
Material | Brass |
Knob | Knurled |
Recommended Operating Tempature Range (°F) | "-15° to +400° F" |
Recommended Operating Tempature Range (°C) | "-26° to +204° C" |
Maximum Operating Pressure (Non-Shock Service) | Brass: 2,000 psi (138 bar) |
Maximum Operating Pressure (Flow Control Poppet) | 60 psi (4 bar) |
Operating Temperature Range | -15° to +400° F (-26° to +204° C) |
Threads | NPTF, BSPT, SAE |
Materials | Body, Housing, Plug: Brass, Steel, Stainless Steel 303 |
DELTROL節流閥F系列介紹
具有正向關閉和自由反向流動功能的可變流量限制器。由于采用細螺紋和錐形針頭，可在受控流向上實現大范圍流量調節。彈簧偏置球閥止回閥或可選的提升閥止回閥可實現反向全流量調節。鎖緊螺母可防止調節過程中出現不必要的變化。
Variable flow restrictor with positive shutoff and free reverse flow. A wide range of flow regulation is possible in controlled flow direction due to fine threads and tapered needle. Spring biased ball check or optional poppet check allows full flow regulation in reverse direction. Lock nut prevents unwanted changes in adjustment.
流量調節范圍廣
鎖緊螺母以保持流量設定
正向關閉
可選配 O 形圈的氣密閥芯
Wide flow adjustment range
Locking nut to maintain flow setting
Positive closing
Optional O-ring gas-tight valve core

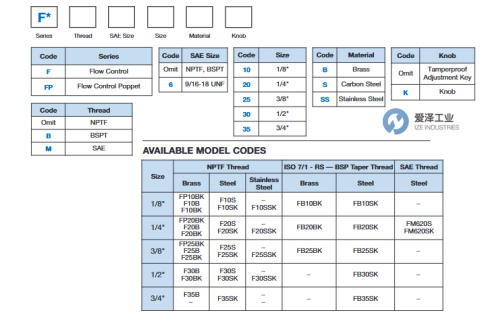

DELTROL節流閥F系列選型
DELTROL節流閥F系列其他常用型號：
DELTROL FP10BK
DELTROL F10-B
DELTROL F10BK
DELTROL FP20BK
DELTROL F20B
DELTROL F20BK
DELTROL FP25BK
DELTROL F25B
DELTROL F25BK
DELTROL F30B
DELTROL F30BK
