電動執行器和氣動執行器實用指南（中英文）
雖然電動執行器和氣動執行器各有優勢，并且在不同的應用中是首選，但選擇錯誤的執行器可能會造成嚴重后果。然而，在兩者之間做出選擇可能會讓人感到困惑。本文將探討氣動執行器和電動執行器的工作原理和區別，并比較分析它們的特性，以幫助用戶根據應用選擇合適的執行器。
閥門執行器是一種自動化設備，用于遠程控制閥門，無需人工干預。這些設備根據接收到的信號產生運動來控制閥門。執行器安裝在需要控制的閥門上，取代手動桿。不同型號的執行器連接閥門和執行器的安裝方式有所不同。
閥門執行器可根據其產生打開閥門所需的扭矩（或力）的方式進行大致分類。根據這種分類，最常見的兩種執行器類型是電動執行器和氣動執行器。電動閥門執行器利用電力產生所需的運動，而氣動執行器則利用壓縮空氣系統。第三種類型的閥門執行器稱為液壓執行器，但不太常見。
While electrical and pneumatic actuators have several unique benefits and are preferred in different applications, using the wrong one for your application can have serious consequences. However, choosing between them can be quite confusing. This article explores the working principles and differences between pneumatic and electric actuators, before comparatively analyzing their features to help you choose the right one for your application.
Valve actuators are automation devices that are used to remotely control valves without human intervention. These devices generate motion to control valves based on signals received. Actuators are mounted on the valves to be controlled, replacing manual levers. The mounting features that connect a valve to an actuator vary in different actuator models.
Valve actuators are broadly classified based on how they generate the torque - or force - required to open a valve. Based on this classification, the two most prevalent types of actuators are electric and pneumatic actuators. Electric valve actuators utilize electricity to produce the required motion, while their pneumatic counterparts utilize compressed air systems. The third type of valve actuator, known as hydraulic actuators exist, but these are less prevalent.
電動執行器
Electric actuators

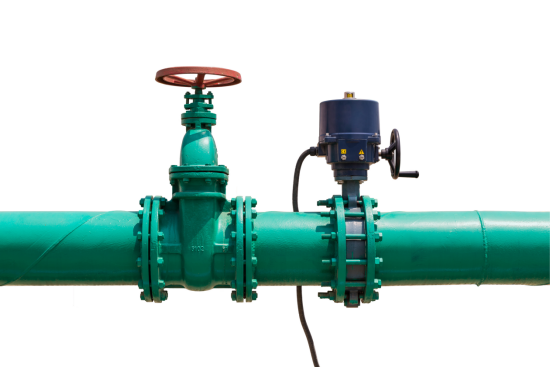

電動執行器將電能轉換為開啟或關閉閥門的力。這些設備可以使用交流電或直流電。電動閥門執行器可能配備電動機，產生旋轉運動來轉動閥門。這種類型的執行器用于需要旋轉 90° 才能打開或關閉的四分之一回轉閥門，也稱為四分之一回轉執行器。球閥和蝶閥執行器就屬于四分之一回轉執行器。
管道和流體控制系統中另一種廣泛使用的電動執行器是電磁執行器。這些設備通常與閥門集成在一起，形成一個整體。
Electric actuators convert electrical energy into the force that opens or closes the valve. These devices may run on AC or DC power. Electric valve actuators may feature an electric motor that produces the rotary motion that turns the valve. This type of actuator is used for quarter-turn valves, which require a 90° turn to open or close, and are known as quarter turn actuators. Examples of quarter-turn actuators are ball and butterfly valve actuators.
Another widely used type of electric actuator in piping and fluid control systems is the solenoid actuator. These devices are typically available integrated with the valves, forming a single unit.
氣動執行器
Pneumatic actuators

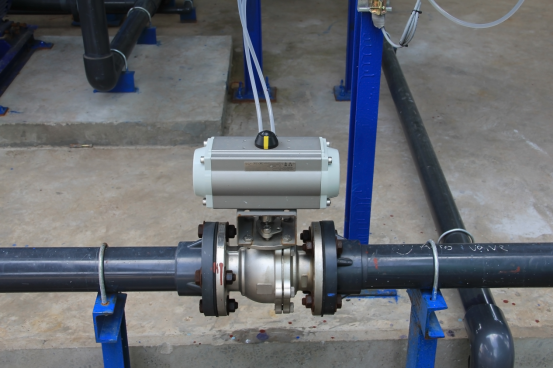

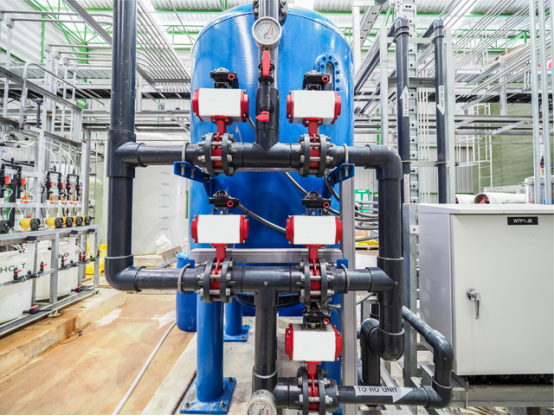

氣動執行器利用氣動元件（受控的壓縮空氣系統）來產生操作閥門所需的力。這些執行器可能配備一個通過壓縮空氣控制的活塞或隔膜。更常見的活塞式執行器包含一個位于腔室內的活塞。氣動執行器可以是單作用式或雙作用式。單作用執行器，通常稱為彈簧復位執行器，在活塞的一側裝有加載彈簧，使閥門保持在自然位置。要打開或關閉閥門，需要在活塞的另一側供給壓縮空氣，氣壓克服彈簧的力。
另一方面，在雙作用執行器中，空氣被供給到活塞的兩側。兩側之間的壓力差使閥門保持在所需位置。氣動執行器通常產生線性運動。然而，在諸如蝶閥執行器（需要產生旋轉運動）的執行器中，使用運動轉換機構 - 例如齒條和小齒輪以及撥叉機構。
Pneumatic actuator utilizes pneumatics - controlled compressed air systems - to produce the force required to operate a valve. These actuators may feature a piston, or diaphragm, that is controlled via compressed air. The more ubiquitous piston-featuring variety contains a piston housed in a chamber. Pneumatic actuators may be single-acting or double-acting. Single-acting actuators, more commonly known as spring return actuators, feature a loaded spring on one side of the piston that keeps the valve in its natural position. To open or close the valve, pressurized air is supplied on the other side of the piston, and the air pressure overcomes the force of the spring.
On the other hand, in double-acting actuators, the air is supplied to both sides of the piston. The difference in pressure between the two sides keeps the valve in the desired position. Pneumatic actuators typically produce linear motion. However, in actuators such as butterfly valve actuators (which are required to generate rotary motion), motion conversion mechanisms - such as rack and pinion, and scotch yoke mechanisms - are used.
電動執行器和氣動執行器之間的選擇
Choosing between an electric and a pneumatic actuator
電動和氣動閥門執行器在不同應用中各有優勢。為了選擇適合應用的執行器，需要分析這些執行器的一些因素和特性。下文將探討其中一些因素和特性。
Both electric and pneumatic valve actuators have specific advantages in different applications. To choose the right one for your application, certain factors and characteristics of these actuators have to be analyzed. Some of these factors and characteristics are explored below.
1. 精度/Precision
精度是指需要在部分開啟或關閉位置操作以允許精確量介質流過的閥門。電動和氣動執行器均可提供精確的控制。然而，當依賴氣動執行時，可能需要在氣動操作設備（例如控制閥）上附加電-氣定位器，以實現化工生產等應用中所需的高精度控制。
Precision is considered for valves that need to operate in partially open or closed positions to allow an exact amount of media to flow through. Both electric and pneumatic actuators provide precise control. However, when relying on pneumatic actuation, the inclusion of an electro-pneumatic positioner may be required as an accessory on a pneumatically operated device such as a control valve to achieve the high precision control necessary in applications such as chemical production.
2. 力的范圍/Force range
氣動執行器單位側向力/扭矩顯著高于電動執行器。對于涉及大型閥門或高工作壓力閥門的應用，氣動執行器是更好的選擇。
Pneumatic actuators provide a significantly higher force/torque per unit side than their electric counterparts. For applications that involve a large valve or a valve with high operating pressure, pneumatic actuators are the better option.
3. 速度/Speed
在防洪等特定應用中，執行速度是一個至關重要的考慮因素。與精度一樣，電動執行器和氣動執行器都可以快速執行。然而，氣動執行器反應更快，占空比更高。此外，氣動執行器的運行速度可調。
Speed of actuation is a crucial consideration in specific applications such as flood control. Like with precision, both electric and pneumatic actuators can be fast. However, a pneumatic actuator reacts faster and has high duty cycles. Furthermore, the operating speeds of pneumatic actuators are adjustable.
4. 使用壽命/Lifespan
氣動執行器組件較少，因此比電動執行器更易于維護，使用壽命更長。電動執行器包含多個部件，可能需要定期維護。雖然執行器單元可能不需要維護，但其他部件（例如空氣壓縮機和FRL（過濾器、調節器和潤滑器））可能需要更頻繁的維護。
Pneumatic actuators have fewer components. Therefore, they are easier to maintain and have a longer lifespan than electrical actuators, which have several parts that may require regular maintenance. However, while the actuator unit may not require maintenance, other components such as the air compressor and the FRL (Filter, Regulator, and lubricator) may require more frequent maintenance
5. 成本/Cost
氣動閥門執行器的設計比電動執行器更簡單，因此其成本低于電動執行器。然而，如果考慮到配套氣動系統的成本，氣動執行系統的總成本就會增加。通過在同一個壓縮空氣供應系統中安裝多個執行器，可以顯著降低這一成本。
The design of pneumatic valve actuators is more straightforward than that of their electric counterparts, and so these actuators cost less than electric counterparts. However, when the cost of the accompanying pneumatic system is considered, the overall cost of a pneumatic actuation system increases. This cost can be significantly reduced by setting up numerous actuators with the same pressurized air supply system.
6. 故障安全/Fail safe
在執行器故障可能造成嚴重后果的應用中，執行器需要配備故障安全機制。在氣動執行器中安裝故障安全裝置更簡單、更經濟。彈簧復位式氣動閥門執行器具有固有的故障安全機制，當發生故障時，彈簧力會自動將閥門返回到其自然位置。
In applications where a failure in the actuator can have severe consequences, the actuator needs to have a fail-safe mechanism. A fail-safe is easier and cheaper to install in pneumatic actuators. Spring return pneumatic valve actuators feature a natural fail-safe mechanism, as the force of the spring will automatically return the valve to its natural position in the case of a failure.
7. 危險條件/Hazardous conditions
電動執行器通常包含精密部件，在危險條件下可能無法正常工作。此外，這些執行器需要獲得多項認證才能被認定適用于特定環境。電動執行器需要高水平的防護，以防高溫高壓、灰塵和潮濕。而氣動執行器則非常堅固，能夠承受比電動執行器更高的壓力和溫度。
Electric actuators often feature delicate components that may not function correctly in hazardous conditions. Furthermore, these actuators require numerous certifications in order to be deemed suitable in certain environments. Electric actuators need a high level of protection against high temperatures and pressures, dust, and moisture. On the other hand, pneumatic actuators are quite rugged and can withstand higher pressures and temperatures than their electric counterparts.
結論
Conclusion
氣動執行器和電動執行器都是高效且功能強大的自動化設備，廣泛應用于各行各業。然而，它們各自擁有獨特的特性，使其在不同應用中脫穎而出。為了選擇最適合應用的執行器，請仔細考慮上述因素。
Both pneumatic and electric actuators are efficient and highly functional automation devices that are employed across various industries. However, they each possess unique characteristics that make them preferable in different applications. To select the best one for your application, carefully consider the above-listed factors.
