EBMPAPST風機S4E300-AS72-53/F02規格描述
Technical features | |
Mass | 3 kg |
Size | 300 mm |
Surface of rotor | Coated in black |
Material of terminal box | ABS plastic, black |
Material of impeller | PP plastic |
Material of guard grille | Steel, phosphated and coated in black plastic |
Number of blades | 5 |
Direction of air flow | "V" |
Direction of rotation | Counter-clockwise, seen on rotor |
Type of protection | IP 44; Depending on installation and position |
Insulation class | "B" |
Humidity class | F1-2 |
Max. permissible ambient motor temp. (transp./ storage) | + 80 °C |
Min. permissible ambient motor temp. (transp./storage) | - 40 °C |
Mounting position | Any |
Condensate discharge holes | None |
Operation mode | S1 |
Motor bearing | Ball bearing |
Touch current acc. IEC 60990 (measuring network Fig. 4, TN system) | < 0.75 mA |
Electrical leads | Via terminal box, integrated capacitor connected via terminal box |
Motor protection | Thermal overload protector (TOP) wired internally |
Cable exit | Variable |
Protection class | I (if protective earth is connected by customer) |
Product conforming to standard | EN 60335-1; CE |
Approval | CCC |

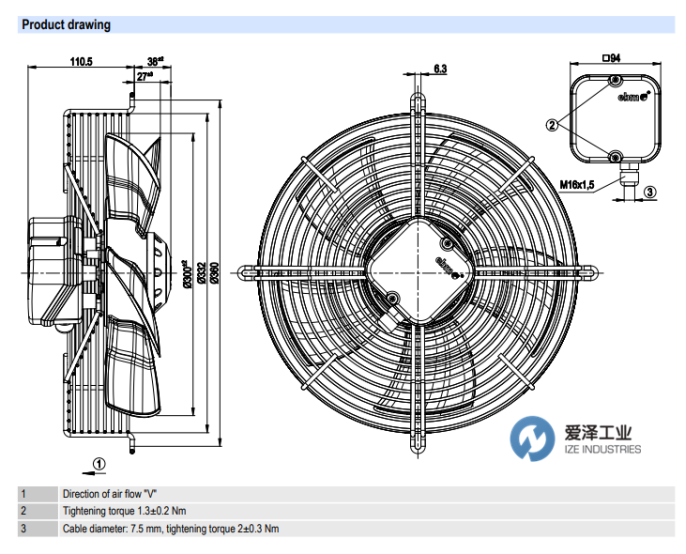

EBMPAPST風機S4E300-AS72-53/F02尺寸圖
EBMPAPST風機S4E系列其他常用型號:
EBMPAPST S4E300-AS72-50
EBMPAPST S4E300-AS72-36
EBMPAPST S4E300-AS72-44
EBMPAPST S4E300-AS72-53/F02
EBMPAPST S4E300-AS72-75
EBMPAPST S4E300-AS72-53
EBMPAPST fan NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EBMPAPST風機S4E300-AS72-53/F02的疑問,請隨時致電我們,愛澤工業(021-31006702)。我們將盡全力解決您的問題。
If you have any question for EBMPAPST products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
EBMPAPST風機S4E300-AS72-53/F02技術數據
