OIL CONTROL成立于1974年諾南托拉(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績?cè)谄嚭凸こ虣C(jī)械行業迅速增長。從最初的 overcentre閥起重機和高空作業平臺開始，公司開始成功地處理與其他液壓機械的兼容應用中，主要應用于負載移動機械的控制，如遠程處理，挖土機，絞車等工程機械。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門領導者，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH OIL CONTROL閥04.95.04-X-85-Z規格描述
Max. operating pressure port 2 (P) | bar (psi) | 350 (5000) | |
210 (3000) for version Z=01 | |||
Max. pressure admitted port 1 (A) | bar (psi) | 105 (1500) | |
Max. flow | l/min. (gpm) | 30 (8) | |
Max. internal leakage (*) | cm3/min. (cu.in./min.) | 50 (3) | |
Fluid temperature range | °C (°F) | -30 to 100 (-22 to 212) | |
Installation torque | Nm (ft-lbs) | 41-47 (30-35) | |
Weight (**) | kg (lbs) | 0.26 (0.57) | |
Cavity | CA-10A-3N | ||
see data sheet RE 18325-70 | |||
Seal kit (***) | code material no. | RG10A3010520100 | |
R901111369 | |||
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) | ||
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 | ||
Installation | No restrictions | ||
Other general technical data | See data sheet RE 18350-50 | ||
(*) 1 - 3 to 80% of pressure setting
(**) Standard version X=03 type
(***) Only external seals for 10 valves

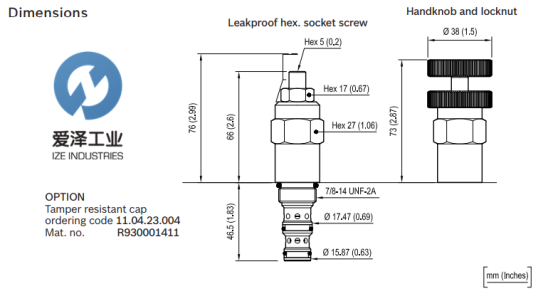

REXROTH OIL CONTROL閥04.95.04-X-85-Z外觀尺寸圖

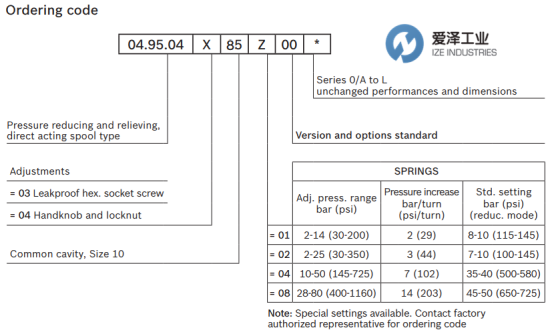

REXROTH OIL CONTROL閥04.95.04-X-85-Z型號解析
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL 04950403850100A R901104066
REXROTH OIL CONTROL 04950403850200A R901109740
REXROTH OIL CONTROL 04950403850400A R901102333
REXROTH OIL CONTROL 04950403850800A R901109742
REXROTH OIL CONTROL 049504048501000 R901109743
REXROTH OIL CONTROL 04950404850200A R901109744
REXROTH OIL CONTROL 04950404850400A R901109745
REXROTH OIL CONTROL 04950404850800A R901109747
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥04.95.04-X-85-Z的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@www.agcjj.cn / browse our website: www.www.agcjj.cn.
REXROTH OIL CONTROL閥04950404850400A R901109745 04.95.04-X-85-Z技術數據
