OIL CONTROL成立于1974年(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績在汽車和工程機械行業迅速增長。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門供應商，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH閥L511… (LC1-DZ)系列技術參數
Technical Data | |
General | |
Valve element with 2 solenoids kg [lbs] | 1.82 [4.0] |
Valve element with 1 solenoid kg [lbs] | 1.33 [2.9] |
Valve element with 2 solenoids, with lever type emergency kg [lbs] | 2.1 [4.6] |
Valve element with 1 solenoid, with lever type emergency kg [lbs] | 1.6 [3.5] |
Ambient Temperature °C [°F] | –20....+50 [-4....+122] (NBR seals) |
Hydraulic | |
Maximum pressure at P, A and B ports bar [psi] | 310 [4500] |
Maximum pressure at T bar [psi] | 250 [3625] |
Max pressure, with lever type emergency at T bar [psi] | 200 [2900] |
Maximum inlet flow l/min [gpm] | 50 [13.2] |
Fluid Temperature °C [°F] | –20....+80 [-68....+176] (NBR seals) |
Permissible degree of fluid contamination | ISO 4572: βx≥75 X=12...15 |
Viscosity range mm2/s | 5....420 |
Electrical | |
Voltage type | DC (AC only with RAC connection) |
Voltage tolerance (nominal voltage) % | -10 .... +10 |
Duty | Continuous, with ambient temperature ≤ 50°C [122°F] |
Coil wire temperature not to be exceeded °C [°F] | 150 [302] |
Insulation class | H |
Compliance with | Low Voltage Directive LVD 73/23/EC (2006/95/EC), 2004/108/EC |
Coil weight with connection EN 175301-803 kg [lbs] | 0.335 [0.74] |
REXROTH閥L511… (LC1-DZ)系列介紹
- 帶有電磁操作方向閥芯的閥元件。
- 由帶有可拆卸線圈的電磁閥操作的控制閥芯。
- 在斷電狀態下，控制閥芯通過復位彈簧保持在中心位置。
- 用于直流線圈的濕針管，帶有用于機械超越的推桿； 表面鍍鎳。
- 線圈可繞管子旋轉360°； 它們可以通過帶有整流器 (RAC) 的特殊連接器由交流電流供電。
- 手動超控（按鈕式或螺旋式）可供選擇。
- Valve elements with solenoid operated directional spool.
- Control spools operated by solenoids with removable coils.
- In the de-energized condition, the control spool is held in the central position by return springs.
- Wet pin tubes for DC coils, with push rod for mechanical override; nickel plated surface.
- Coils can be rotated 360° around the tube; they can be energized by AC current through special connectors with rectifier (RAC).
- Manual override (push-button or screw type) available as option.

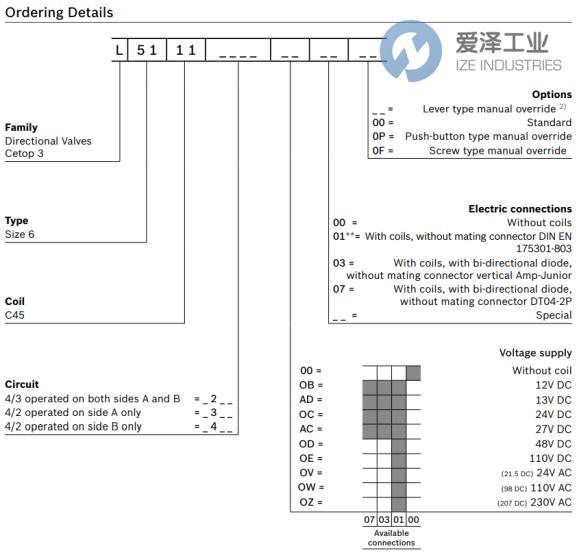

REXROTH閥L511… (LC1-DZ)系列選型
REXROTH閥L511… (LC1-DZ)系列其他常用型號：
REXROTH L5111E201OC0100 R933003797
REXROTH L5111B201OC0100 R933003799
REXROTH L5111B201000000 R933004328
REXROTH L5111E301OC0100 R933004432
REXROTH L5111C201OC0100 R933004369
REXROTH L5111C201000000 R933004364
REXROTH L5111Y301OC0100 R933003798
REXROTH L5111M501OC0100 R933004492
REXROTH L5111A201000000 R933004289
REXROTH VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥L5111A201000000 R933004289的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702 or browse our website: www.www.agcjj.cn.
REXROTH閥L5111A201000000 R933004289技術參數及選型
